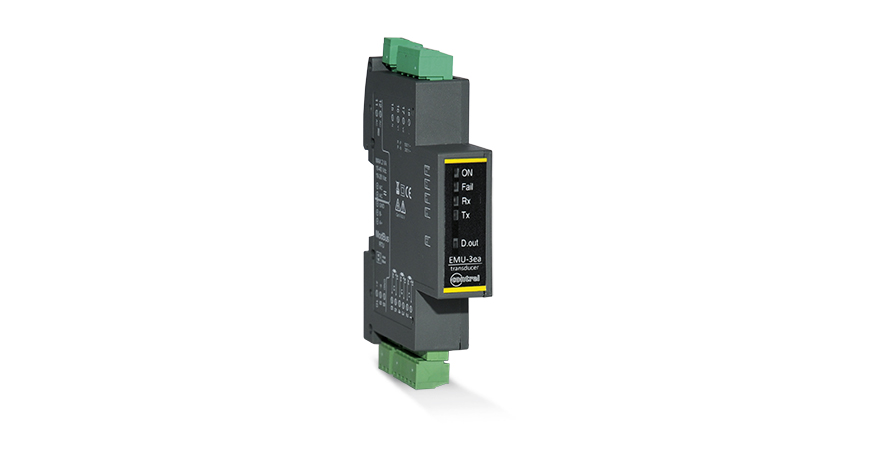

| Technical characteristics |
| Applications |
Energy monitoring |
| Power quality analysis |
Up to the 63rd harmonic |
| Type of measurement |
True RMS
Active and reactive power
Apparent power
Current
Voltage
Energy
Power factor
Frequency
Total current harmonic distortion THD (I)
Total voltage harmonic distortion THD (V)
|
| Supply voltage |
10...40 VDC
20...30 VAC |
| Network frequency |
50 Hz
60 Hz |
| Rated current [In] |
5 A
1 A
Rogowski coils
CT with secondary 333 mV |
| Power consumption |
0,7 W |
| Measurement voltage |
300 V phase to neutral
500 V phase to phase |
| Frequency measurement range |
1-70 Hz |
| Sampling |
6400 samples/s 50 Hz
7280 samples/s 60 Hz |
| Neutral current input |
Measured
Calcolated |
| Accuracy class |
Voltage +/- 0.2 %
Current +/- 0.2 %
Frequency +/- 0.1 Hz
Active and reactive power +/- 0.5 % |
| Classe di precisione |
Class 0.5S active energy conforming to IEC 62053-22
Class C active energy conforming to EN50470-1/3 |
| Number of outputs |
1 |
| Communication port |
RS485 |
| Communication protocol |
Modbus 4,8...115,2 kbauds |
| Mounting mode |
DIN rail 1 module |
| Standards |
EN61000-6-4
EN61000-6-2
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61010-1
EN61010-2-030 |
| Weight |
60g |
